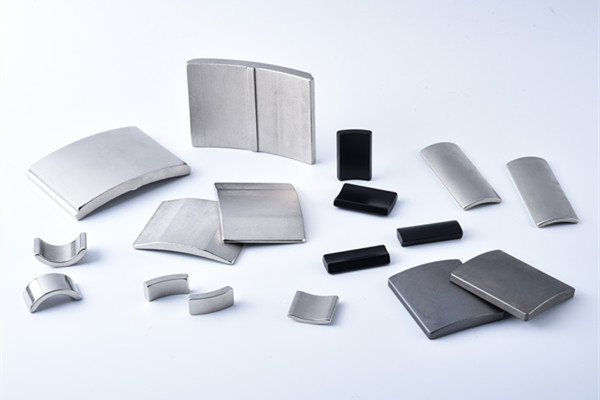

Permanent Nd Magnet in Arc or C shape, it is very popular used in industrial Motor and Energy-saving Elevator applications.
1) Over decades experience in NdFeB manufacturing and Marketing
2) Strategic partner of several world top 500 Enterprise, operating well under TS16949
3) Samples and trial orders are welcome
4) Competitive Price & Short Lead Time, cause it is directly from real producer.
5) Professional suggestion or advice is available when you have doubts in design.
|
Product name |
Permanent NdFeB Arc Magnet, Nd Arc magnet, Neo Arc magnet, Rare earth Arc magnet. |
|
|
Material |
Neodymium iron boron, Neo Magnet, Nd Magnet, Rare earth Magnet |
|
|
Grade & working Temperature |
Grade |
Max Operating Temperatures |
|
N35-N54 |
80°C (176°F) |
|
|
35M-52M |
100°C (212°F) |
|
|
35H-50H |
120°C (248°F) |
|
|
33SH-48SH |
150°C (302°F) |
|
|
28UH-45UH |
180°C (356°F) |
|
|
28EH-42EH |
200°C (392°F) |
|
|
28AH-40AH |
230°C (446°F) |
|
|
Shape |
Arc, but Disc, Ring, Cylinder, Block and Irregular shape are also available |
|
|
Coating |
Ni, Ni-Cu-Ni, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Ag, Sn etc. |
|
|
Magnetized direction |
Diametrical Magnetized, but Axially, Thickness, Multipoles and Radial magnetization are also available, Customized magnetization is welcome. |
|
|
Application |
Servo motor, Brushless motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor, Rail Transit Traction Motor, Consumer Electronics, Wind turbine, Energy-saving Elevator, Magnetic switch, VCM, Magnetic separator, sensor etc. |
|
|
Certificate |
ISO/TS 16949, ISO9001, ISO14001, RoHS, REACH |
|
|
Packing |
Standard sea or air packing, such as carton, wooden box, pallet etc. |
|
|
Lead time |
7 days for samples, 15-20 days for mass production. |
|
|
Transportation |
All shipping methods are available: courier (TNT, DHL, FedEx, UPS), air or sea. |
|
Ni, NiCuNi, Electroless Nickel, Zinc, Colored Zinc, Epoxy, Passivation, Phosphated, Everlube, Au, Sn etc.
Thickness, Axially, Diametrical, Multipoles and Radial magnetization are available, Customized magnetization is welcome.
NdFeB Magnet are widely used in Servo motor, Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Traction Motor, wind turbine, Energy-saving Elevator, Loudspeaker, Magnetic switch, VCM, MRI, Magnetic separator, sensor etc.
6, Packing of Permanent NdFeB Magnet:Standard sea or air packing, such as carton, wooden box and pallet etc.
Our engineering center occupied over 600 square meters with advanced analytical methods and full set of sophisticated test apparatuses, it not only assured the top quality of TC product, but also the foundation of our research and technic improving. The main test apparatuses are as follow:
ICP Tester, Scanning Electron Microscope, Laser Particle Size Analyzer, HAST Tester, Projectors, X-Ray Thickness Tester, Carbon-Sulfur Analyzer, Oxygen Analyzer, Hysteresigraph, Salt Spray Tester, Electrothermal Aging Test Box, Oxyhydrogen Tester, Magnetic field distribution tester, Image Dimension Measuring System, Vickers Hardness Tester, Magnetic Deviation Angle Tester, Universal Testing Machine etc.
If you have any question about us, welcome to contact us anytime!
