NdFeB Pot Magnet, Magnetic hook

Material: N35, N38 Neodymium (Nd) magnet and Q235, SS304 steel shell.

Outer Diameter：D10-D75mm or customized.

Application: Hanging small metal things on metal surface.

Key words: Super pull force, Strong clamping force, Magnetic Hook.

Description

TC Mag, Your solid and reliable partner

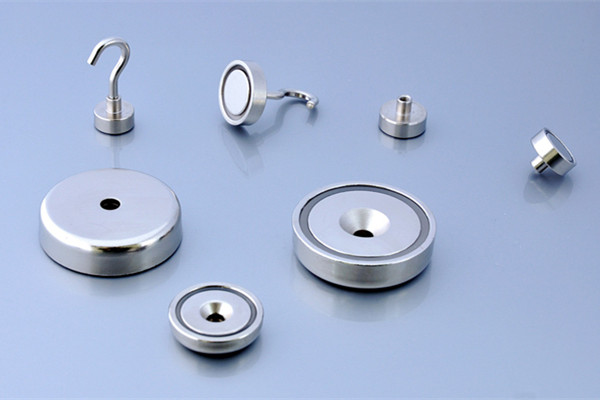

NdFeB Pot Magnet and Magnetic Hook:

NdFeB Pot Magnet and Magnetic Hook are suitable for small sized magnetic products with maximum pull strength (Especially when in direct contact with ferromagnetic e.g. mild steel surfaces). The pull force achieved is related to the surface that is being clamped onto (material type, thickness, flatness, friction levels etc), its quality (e.g. rust free), its size (thickness plus total surface area) and the grade of Neodymium magnet.

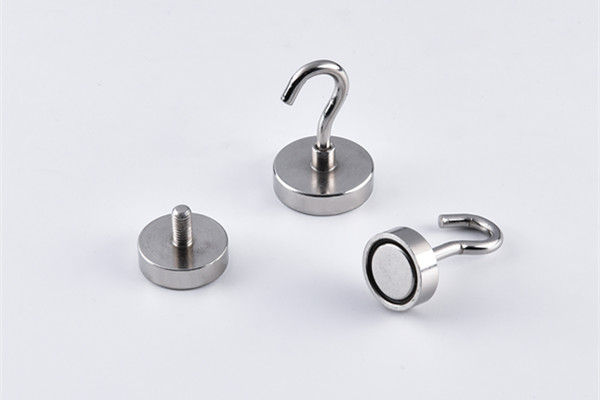

Neodymium magnetic hook is made of strong Neodymium magnet and a steel cup with normal hook attached at the top, it can hold almost anything ferromagnetic you need to keep with easy reach, especially convenient for kitchen or workshop use.

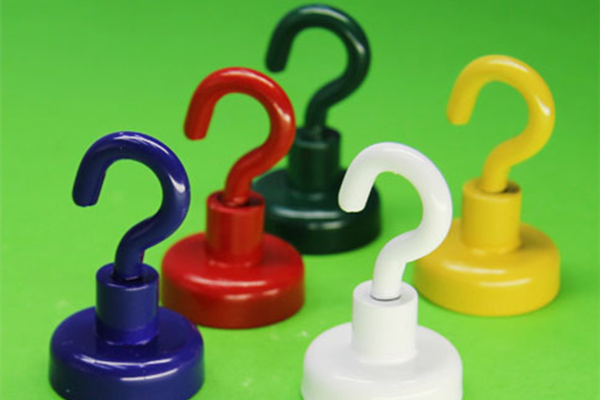

We are offering neodymium pot magnet and magnetic hook in a variety of different sizes from D10mm to D75mm, different size get different pull force, Ni plated is the most popular coating, but we can also paint outer steel cup and hook with different colors if requested, such as Yellow, Red, White, Blue, Black and more.

(1) NdFeB Pot Magnet with Male Threaded

Model	D	M	H	h	Net Weight(g)	Attraction Force(Kg)
TC 10	10	3	14.3	5	3.4	2
TC 12	12	3	14	5	4.4	3.5
TC 16	16	4	14	5.2	9	5.5
TC 20	20	4	16	7.2	16	9
TC 25	25	5	17	7.7	26	22
TC 32	32	6	18	7.8	43	34
TC 36	36	6	17.6	7.6	54	41
TC 42	42	6	18.7	8.8	83	68
TC 48	48	8	24	10.8	130	81
TC 60	60	8	31.5	15	256	113
TC 75	75	10	35	17.8	510	164

(2) NdFeB Pot Magnet with Female Threaded

Model	D	D1	M	H	h	Net Weight(g)	Attraction Force(Kg)
TD 10	10	6	3	12.5	5	3.8	2
TD 12	12	6	3	12.5	5	4.9	3.5
TD 16	16	6.5	4	13.5	5.2	9	5.5
TD 20	20	6.5	4	15	7.2	17	9
TD 25	25	7.5	5	17	7.7	28	22
TD 32	32	10	6	18	7.8	45	34
TD 36	36	10	6	18.5	7.6	55	41
TD 42	42	10	6	18.8	8.8	84	68
TD 48	48	12	8	24	10.8	130	81
TD 60	60	12	8	28	15	263	113
TD 75	75	17	10	35	17.8	515	164

(3) NdFeB Pot Magnet with Countersunk Mounting (Shallow Pot)

Model	D	D1	D2	H	Net Weight(g)	Attraction Force(Kg)
TA 16	16	3.5	6.5	5.2	7	5
TA 20	20	4.5	8.6	7.2	15	6
TA 25	25	5.5	10.4	7.7	24	14
TA 32	32	5.5	10.4	7.8	39	25
TA 36	36	6.5	12	7.6	50	29
TA 42	42	6.5	12	8.8	77	37
TA 48	48	8.5	16	10.8	120	68
TA 60	60	8.5	16	15	243	112
TA 75	75	10.5	19	17.8	480	162

(4) NdFeB Pot Magnet with Through Hole Mounting

Model	D	D1	D2	H	Net Weight(g)	Attraction Force(Kg)
TB 16	16	3.5	6.5	5.2	6.5	4
TB 20	20	4.5	8	7.2	13	6
TB 25	25	5.5	9	7.7	22	14
TB 32	32	5.5	9	7.8	38	23
TB 36	36	6.5	11	7.6	48	29
TB 42	42	6.5	11	8.8	75	32
TB 48	48	8.5	15	10.8	114	63
TB 60	60	8.5	15	15	235	95
TB 75	75	10.5	18	17.8	460	155

(5) NdFeB Magnetic Hook：

Model	D	D1	M	h	H	H1	Net Weight(g)	Attraction Force(Kg)
TD 10	10	6	3	5	12.5	34.5	5.3	2
TD 12	12	6	3	5	12.2	34.5	6.4	3.5
TE 16	16	6.5	4	5.2	13.5	35.7	12	5.5
TE 20	20	6.5	4	7.2	15	37.8	21	9
TE 25	25	7.5	5	7.7	17	44.9	33	22
TE 32	32	10	6	7.8	18	47.8	54	34
TE 36	36	10	6	7.6	18.5	49.8	64	41
TE 42	42	10	6	8.8	18.8	50	93	68
TE 48	48	12	8	10.8	24	61	150	81
TE 60	60	12	8	15	28	66	283	113
TE 75	75	17	10	17.8	35	84	555	164

Main info of Pot Magnet and Magnetic Hook：

1. Name：NdFeB Pot Magnet, Magnetic Hook, Color Paint Magnetic Hook

2. Material：NdFeB Magnet, Metal Shell, Plastic Spacer

3. Normal Working Temperature：≤80℃

4. Popular Grade of Magnet：N35, N38 etc

5. Coating：Nickel, Zinc, Colorful paint etc

6. Pull Force：2-180Kg, Customized service is also available.

7. Color：Sliver, Red Paint, White Paint, colorful Paint etc

8. Packing：Standard packing for Sea and Air.

9. Delivery time: 10—20 days

Applications:

There are many applications for NdFeB Pot Magnets and Magnetic Hook, mainly in applications where a strong clamping force is required.

It is useful for hanging hot pads, keys, utensils, mirrors, ornaments and other decorations on metal doors, door / cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings, refrigerators, filing cabinets or other metal surfaces.

Our advantages	1. We are manufacturer
	2. More than 10 years in this industry
	3. ISO/TS 16949, ISO 9001, ISO 14001, RoHS, Reach
	4. Effective & professional technical support
	5. Strict QC & top quality
	6. Reasonable & competitive prices
	7. Professional & efficient service

We can provide a complete service from consult, design to sampling and bulk production, Should you have any questions, please contact our professional engineer.
